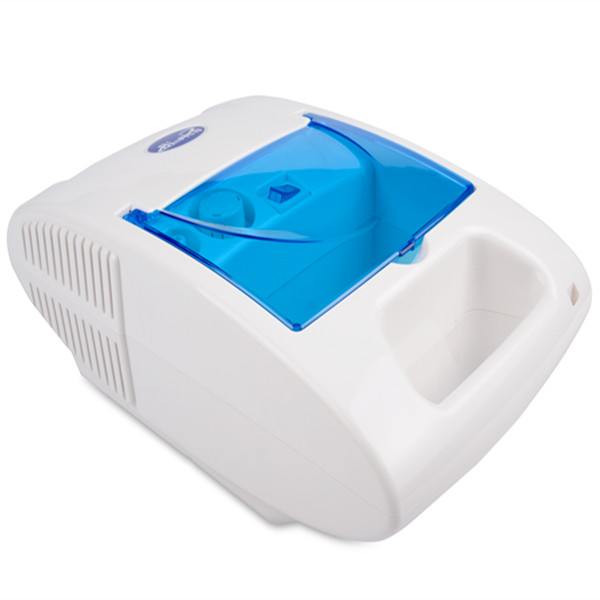

2.Nice design with flip lid
3.Operation smoothly and quietly
4.Effective medication delivery
- Specification
1. Power: AC 230 V-50Hz or 120V -60Hz
2. Input Power:160VA or 180VA
3. Rate Current: 0.7A or 1.5A
4. Max Capacity of Medicine cup: 6ml (cc)
5. Average Nebulization Rate: ≥0.18ml/min
6.Mode of Operation: continuous ＞24 hours
7.Max Working Pressure : ≥35Psi ( 345Kpa; 3.5 Bar )
8.Operation Pressure Range: 9-16Psi( 62-110Kpa; 0.6-1.1 Bar )
9.Liter Operation flow: 5-8 LPM
10.Noise: ≤58dB(A) ( at 1 meter distance )
11. MMAD: 3.0 um (0.9% saline/ tested by Cascade Impactor)
12.Unit Size: 270 X 160 X 97 MM
13.Unit Weight: 1.48 KG
14.Operation Condition: ﹢5℃ to ﹢40℃, 10% RH to 93% RH
15.Suggested Applications : Hospital, clinic, atomizer
room, nursing home, personal home care.
Packing :
-Color gift box+
plastic inner tray+Instruction manual
-Carton size: 40 X 31 X 51
CM (8pcs/ carton)
-Net Weight : 16.0 KGS Gross Weight: 16.5 KGS
-1X 20″FT Container : 3760pcs
- Detail description
1.Power: AC 230 V-50Hz or 120V -60Hz
2.Input Power: 160VA or 180VA Max
3.Rate Current: 0.7A or 1.5A
4.Operation Pressure Range: 9-16 psi (62-110kPa)
5..Operating flow range: 5-8 LPM
6.Max Pressure: ≥35 psi(241kPa)
7.Nebulization Rate: 0.2mL/min～0.6mL/min
8.Particle size (MMAD):2.4μm
9.Noise: ≤58 dB(A) (at 1 meter distance)
10.Max Capacity of Medicine cup: 6mL(cc)
11.Residual volume≤1.0ml
12..Operation Condition: +5℃ to + 40℃，30% R.H. to 85% R.H.
13.Transportation and storage conditions:-20℃~60℃,10%R.H.~93%R.H
14.Operating atmospheric pressure range:70～106 kPa
